Re1000 InkJet

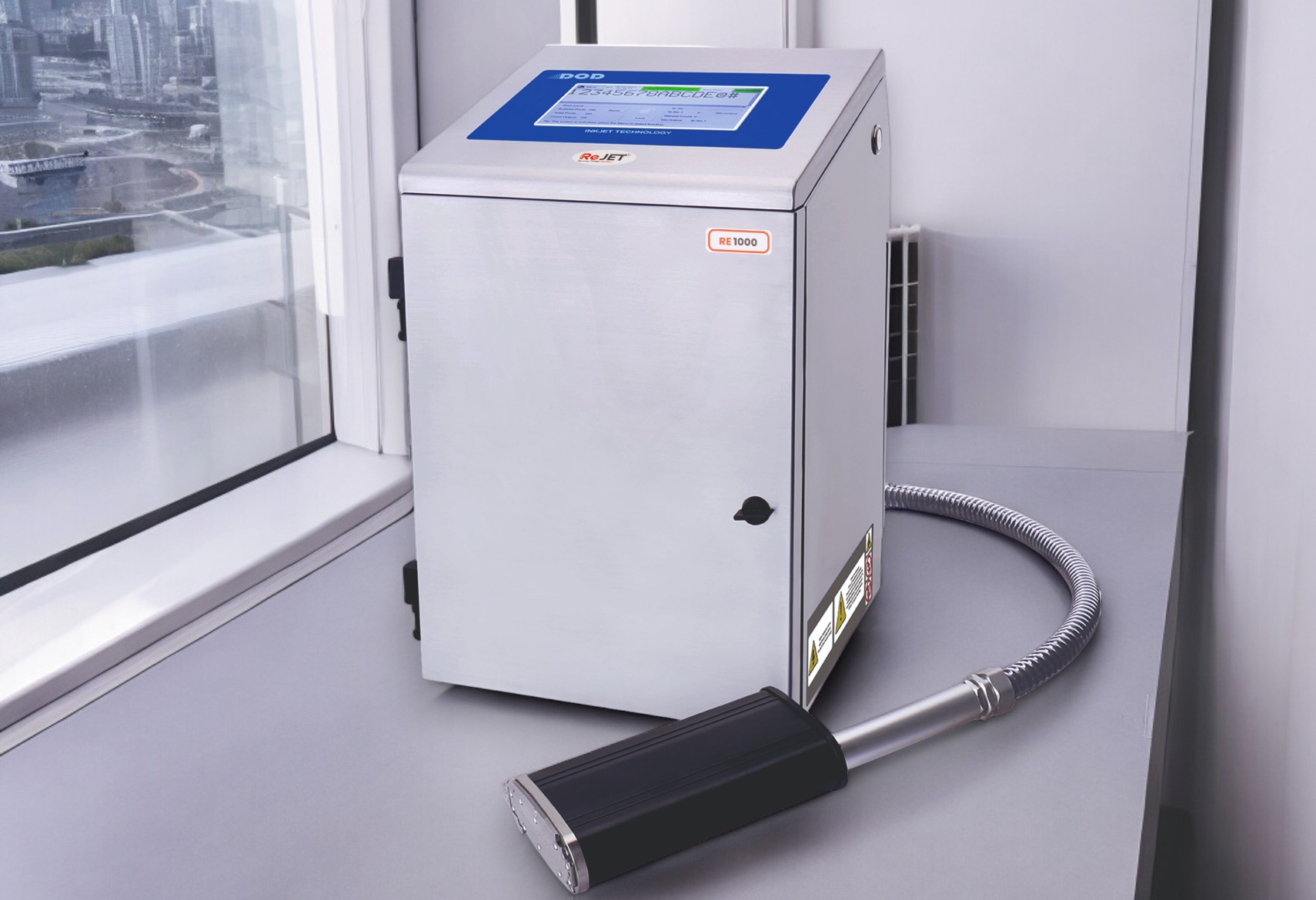

Re1000 InkJet Printer

Download Brochure
ReJet InkJet RE1000
ReJet InkJet RE1000

Specifications

Operating System : Embedded Linux security operating system
Display Screen : 10.1 Inch colored touch screen, good human-computer interaction interface.
Font : 5X6L, 7X6L, 7X10L, 9X8L, 9X11L, 11X11L, 12X12L, 16X16L, 24X24L, 32X32L,11X11B, 12X13B, 16X16B, 24X24B, 32X32B
Communication Interface : Network interface, RS232, connection to enterprise EMS System (Various external equipment protocols can be added)
Power Requirements : 220 - 240 ACV, 5A, 50/60Hz, 1PH
Memory : 256M
Machine Material : 304 stainless steel
Machine Dimension : 296X296X490 (L*B*H*)
Working Environment : Temperature 40-105ºF (10-40ºC) Humidity 10%-90%, Non Condensing
Related Certification : CE, EAC, BIS
Main Hardware : High integration of the industrial level of the new motherboard works fast and stable, which can be better to deal with the extremely harsh environment
External Interface : Optical Sensor, Encoder, Signal Light Alarm, Output, Information Selection and Control,Reset Switch
Support Language : Support more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Japanese, Spanish, Italian, etc).

Product Details

Print Head Duct : 3MTR / 6MTR
Nozzle Specification : 150um
Printing Height : 5mm to 128mm
Printing Distance : 3mm to 30mm
Printing Lines : 1 to 4 Lines
Printing Speed : 63 m/min
Counter : Upto 20 Counter
Ink Colour : Black, White. Blue, Green, Yellow, Invisible
Ink Type : MEK based, Water based, Alcohol based, Acetinyl, Pigment
Printing Material : Carton, Plastic, Metal, Boarding, Pipe, Stone, Cable, Glass, Electronic components, Auto parts, Industrial chemical packaging Medical, Food
Print Content : Text, Time, Date (Julian Year), Logo, Shift, SN, Dynamic Barcode/QR Code, Dynamic Serial Data, Dynamic Database.

Key Benefits

  • Easy operation with 7"large screen
  • One-key start and stop precise control
  • Independent module maintenance is simple
  • Automatic cleaning to prevent clogging
  • Classic ink circuit is stable and reliable

Ink System

  • The double stirring ink system design of the white ink machine and the automatic stirring mode of software sleep can better solve the problem of pigment and special ink precipitation, to ensure the stable operation of the machine

Main Hardware

  • High integration of the industrial level of the new motherboard works fast and stable, which can be better to deal with the extremely harsh environment

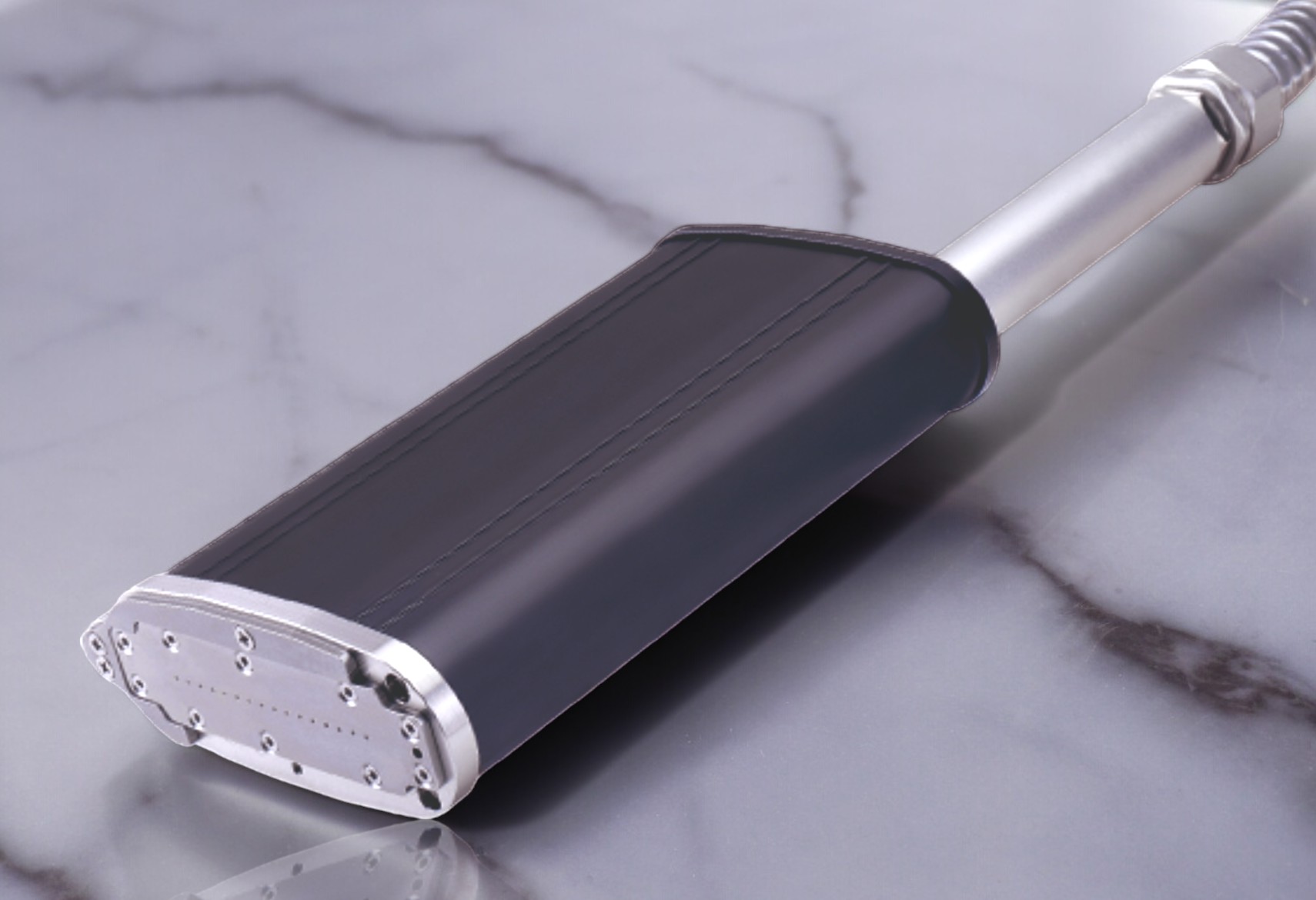

Print Head

  • The nozzle uses wear-resistant and durable gem material, which makes the dot of the jet more round and can be used for a long time. The print head can be rotated to achieve to print different characters and different fonts.
