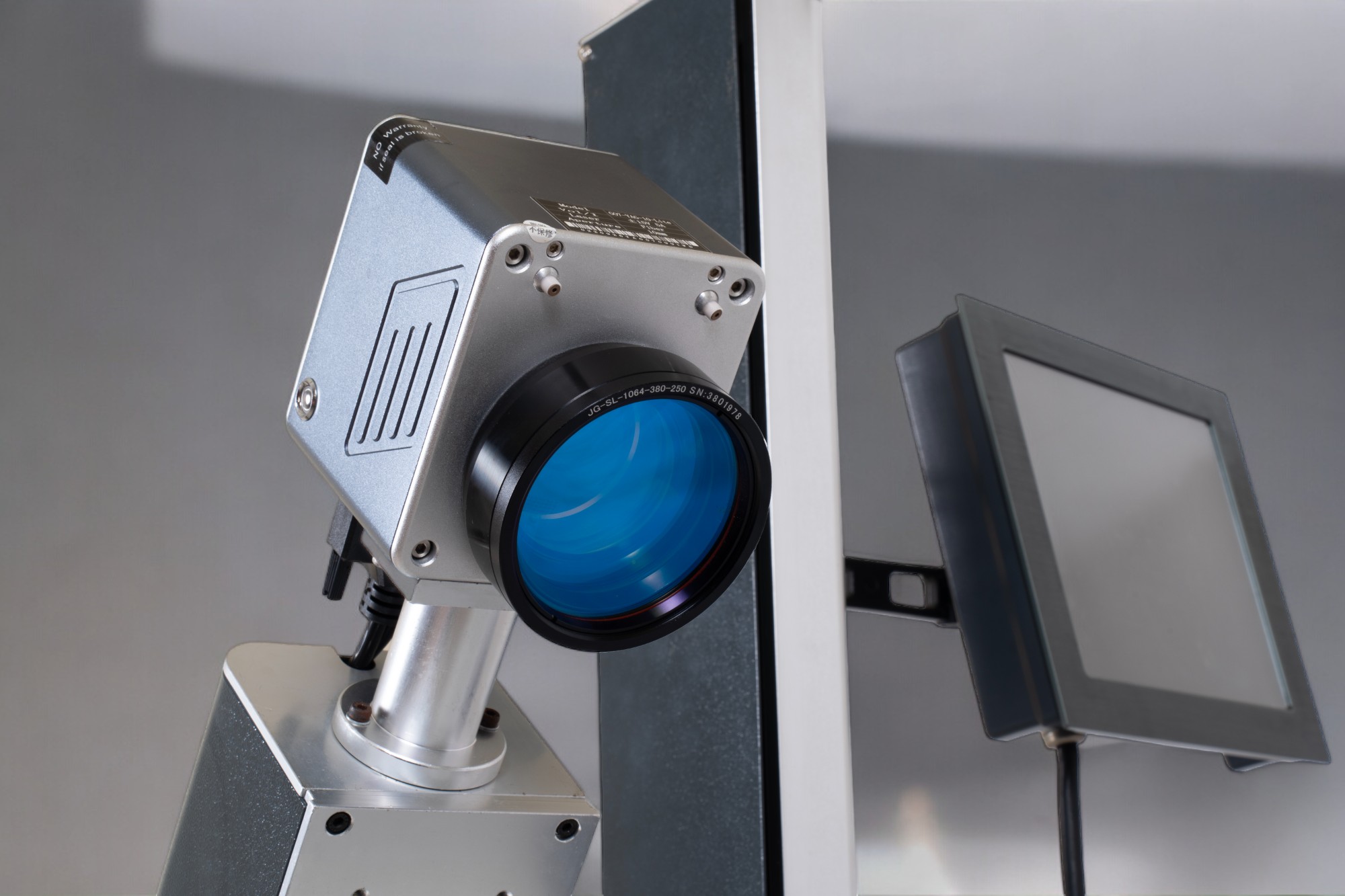

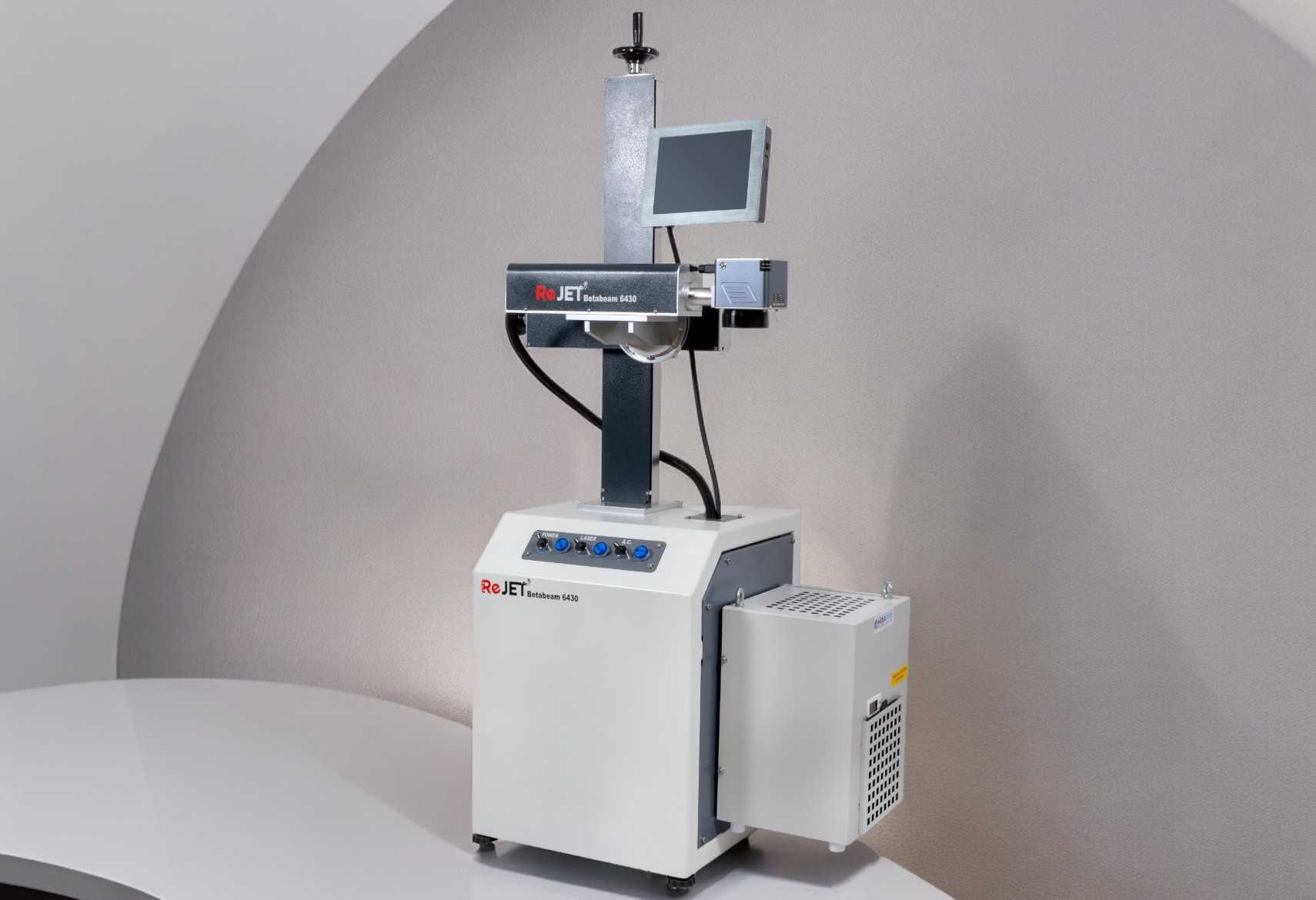

Fiber Laser

Download Brochure

Laser Model	:	Betabeam 6430/6450
Laser Type	:	Multimode Fiber Laser
Laser Power	:	30W, 50W
Electrical Requirement	:	100-230 VAC, 5A, 50/60Hz, 1PH
Load	:	< 1KW
Temperature	:	40-105 °F (10-40°C)
Humidity	:	10% to 90%, Non Condensing
Wave Length	:	1064nm
Depth of Engraving	:	80 Micron
Laser Source	:	Raycus, JPT, IPG
Laser Guide	:	In Built Red and Red Focal
Marking Speed	:	0 ~ 8000 mm/s
Marking Area	:	100mm X 300mm
Marking Format	:	Logo, Text, Barcode, TTf Font, Automatic Date & Time, Realtime Clock, Sequential and Batch Numbering
Machine Speed	:	1m/min to 100 m/min(Depend on Application & Character Size)
Language Support	:	English, Arabic

Laser Communication and Control interface card or time delay high speed, High Efficiency.
24/7 Hours Continuous working ability.
Satisfy the Requirement of large scale online continuous production with Perfect Meter Marking.
Support automatic coding ,variable text, Serial number, batch number, Date, Etc.
High-Precision Marking up to 80microns deep.
Support quick reaction and smooth operation.
Linux Software Ensure a stable and secure system
Support RS232.TCP/IP Communication Photoelectric Sensors, encoder and other peripheral interface can be flexibly docking different production line.
