Re225 InkJet Printer

Download Brochure
ReJet InkJet RE225
ReJet InkJet RE225

Data Specifications

Text : Support all UNICODE content
Graphics : USB import. ('.bmp' self-edited graphics)
ID barcode : Code39, Code93, Code128, EAN13, ITF, Barcode, UPC_A&C
OR Code : OR CODE (Size : 21X21, 25X25, 29X29, 33x33, 37X37)
Data Matrix
Size		 : 10X10, 12X12, 14X14, 16x16, 8X18, 18X18, 20X20, 22X22, 24x24, 26x26, 8X32, 32X32, 12x36, 16×36
Font Matrix
Configuration		 : 3x5, 5x5, 4x6, 5x7, 7X9, 7X13, 8×13, 9x15, 9x18, 10×20, 12X12, 12х24, 16×16, 24×24, 32×32

Product Details

Product Model : 225
Max Printing Dots : 32 dots
Printing Lines : 1 to 5 Lines
Printing Height : 1.2mm to 15mm
Max Printing Speed : 400 m/min
Nozzle Size : 60um (optional 50um)

Features

Temperature Range : 5°C - 45°C (41F - 113F)
Humidity Range : 10% -90% RH without condensation
Power Requirement : AC100-240V, 50/60Hz, 150W
Body Material : Carbon steel, black spraying
Protection Level : IP55
Dimension : 452*261*450mm
Net Weight : kg (without consumables)

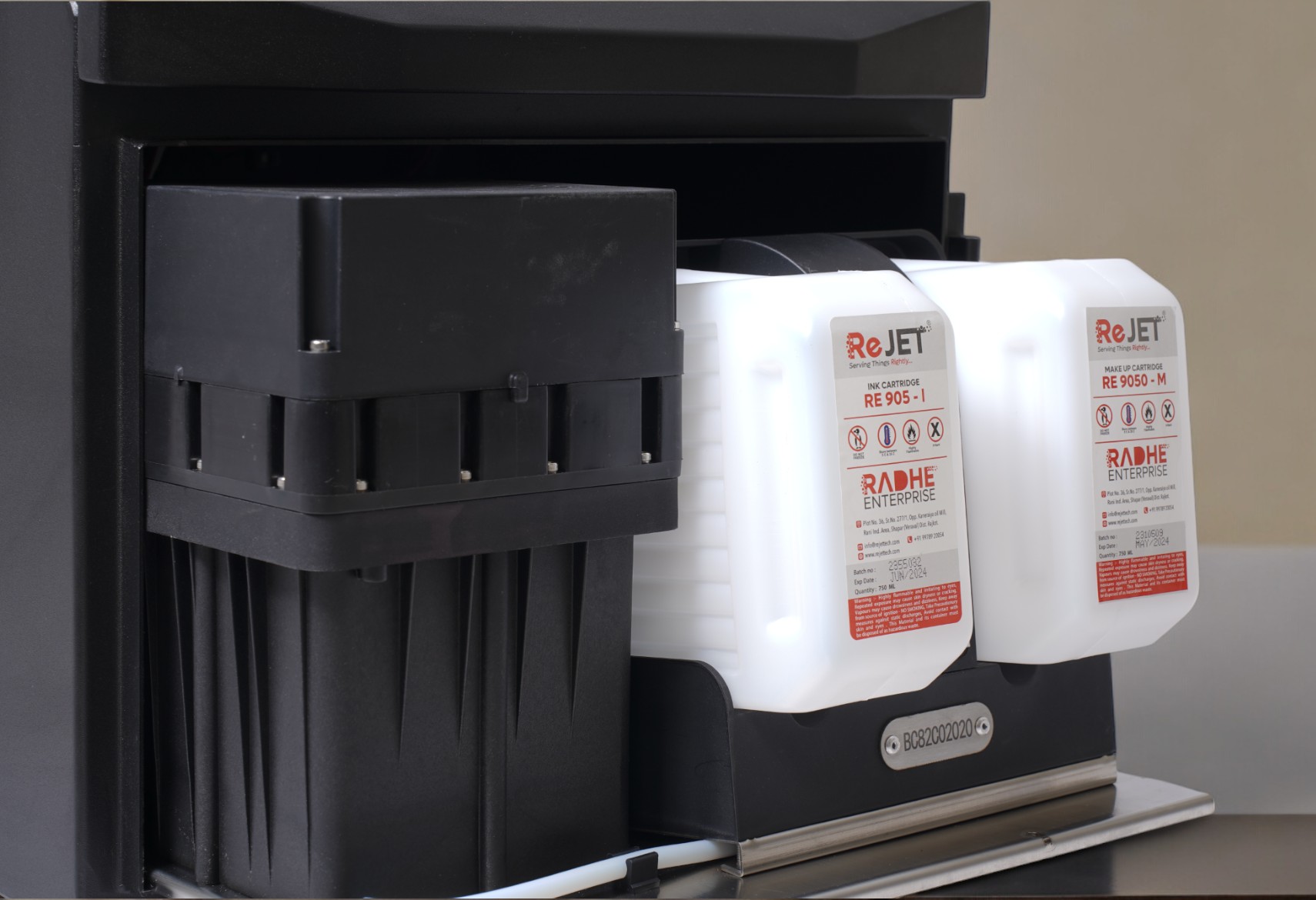

Ink System

Capacity : 750ml / 750ml
Ink Color : Black, Blue, Red, Green, Brown

Print Functions

  • Single line printing 1000 characters
  • Automatic date update, can print hours, minutes, seconds, date, week, month, year
  • Invert images, barcode and text (such as white on black)
  • Create and edit messages during coding
  • 5 sets of serial numbers can be printed at the same time

Hardware Sepcs

  • Ink circulation maintenance system (filter system), maintenance interval
  • Intelligence temperature maintain system on printhead, suit to the environment automatically
  • The ink cartridge and solvent cartridge are designed to prevent incorrect installation, and the capacity can be 750ml
  • Support static and dynamic application of nozzle

Nozzel Specs

  • Yc-icst intelligent constant temperature system
  • Fully automatic ink drop decomposition, charging and controlling ink line
  • Catheter length 2.5m (optional 5m)
  • Minimum bending radius of conduit is 85 mm

User Interface

  • 10.1 inch high sensitive touch screen
  • Operating system: CS Printer System i custom developed based on Android
  • Operation interface: ACC UI 2.0

Software

  • One key to start/stop coding
  • Automatically save data when power off
  • Switch languages without rebooting
  • Parameter backup and restore function
  • Database files, fonts, pictures, language files, and print files can all be imported or exported through a USB storage device.
  • Enhanced Mode Cleaning Nozzles
  • One-click automatic cleaning of the entire ink circuit (long-time shutdown)
  • Automatically adjusts ink droplets to ensure the best typing quality
