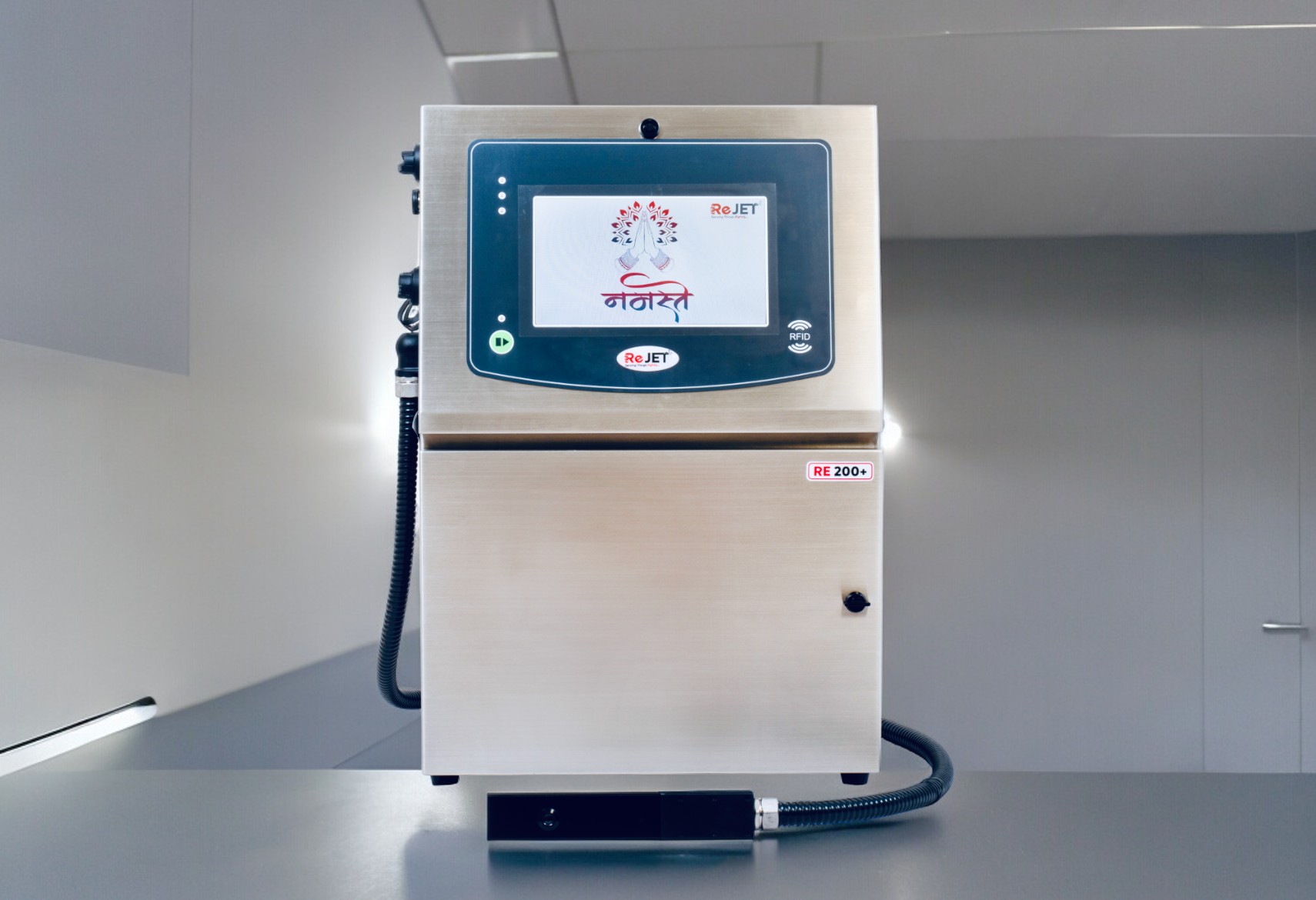

Re200+ InkJet Printer
Specifications
| Operating System | : | Embedded Linux security operating system |
| Display Screen | : | 10.1-inch colour display, industrial touchscreen |
| Communication Interface | : | Network port, USB, RS232 |
| Protection Level | : | IP55 |
| Power Parameters | : | Input 220-240V |
| Rated Power | : | 150W |
| Memory | : | 256M |
| Machine Material | : | 304 stainless steel |
| Machine Specifications | : | 447mmx242mmx650mm (L X W X H) |
| Working Environment | : | Temperature0-45°C/Humidity 30-70%Rh |
| Related Certification | : | RoHS, CE, BIS |
| Net Weight | : | 30Kg |
| Main Hardware | : | American TIAM3358 industrial grade CPU, American Xilinx Spartan-6 industrial grade FPGA |
| External Interface | : | Optical sensor, Encoder, Reverse and upside down control, Signal light alarm output, Serial number output control, External printing information selection. |
| Support Language | : | Support more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Japanese, Spanish, Italian, etc). |
Product Details
| Conduit Length | : | 3MTR |
| Nozzle Specification | : | 60um |
| Printing Height | : | 2mm to 14mm |
| Printing Distance | : | 1mm to 15mm |
| Printing Lines | : | 1 to 5 Lines |
| Printing Speed | : | 450 m/min |
| Counter | : | More than 20 Independent Counter |
| Ink Colour | : | Black, Red, Brown, Royal Blue, Sky Blue, Green |
| Font | : | 5x6L, 7x6L, 7x10L, 9x8L, 9×11L, 11x11L, 16x16L, 24×24L, 32×32L, 11x11B, 16×16B, 24×24B, 32×32B |
| Printing Material | : | Carton, Plastic, Metal, Boarding, Pipe, Stone, Cable, Glass, Electronic components, Auto parts, Industrial chemical packaging Medical, Food |
| Print Content | : | Text, Time, Date (Julian Year), Logo, Shift, SN, Dynamic Barcode/QR Code, Dynamic Serial Data, Dynamic Database. |

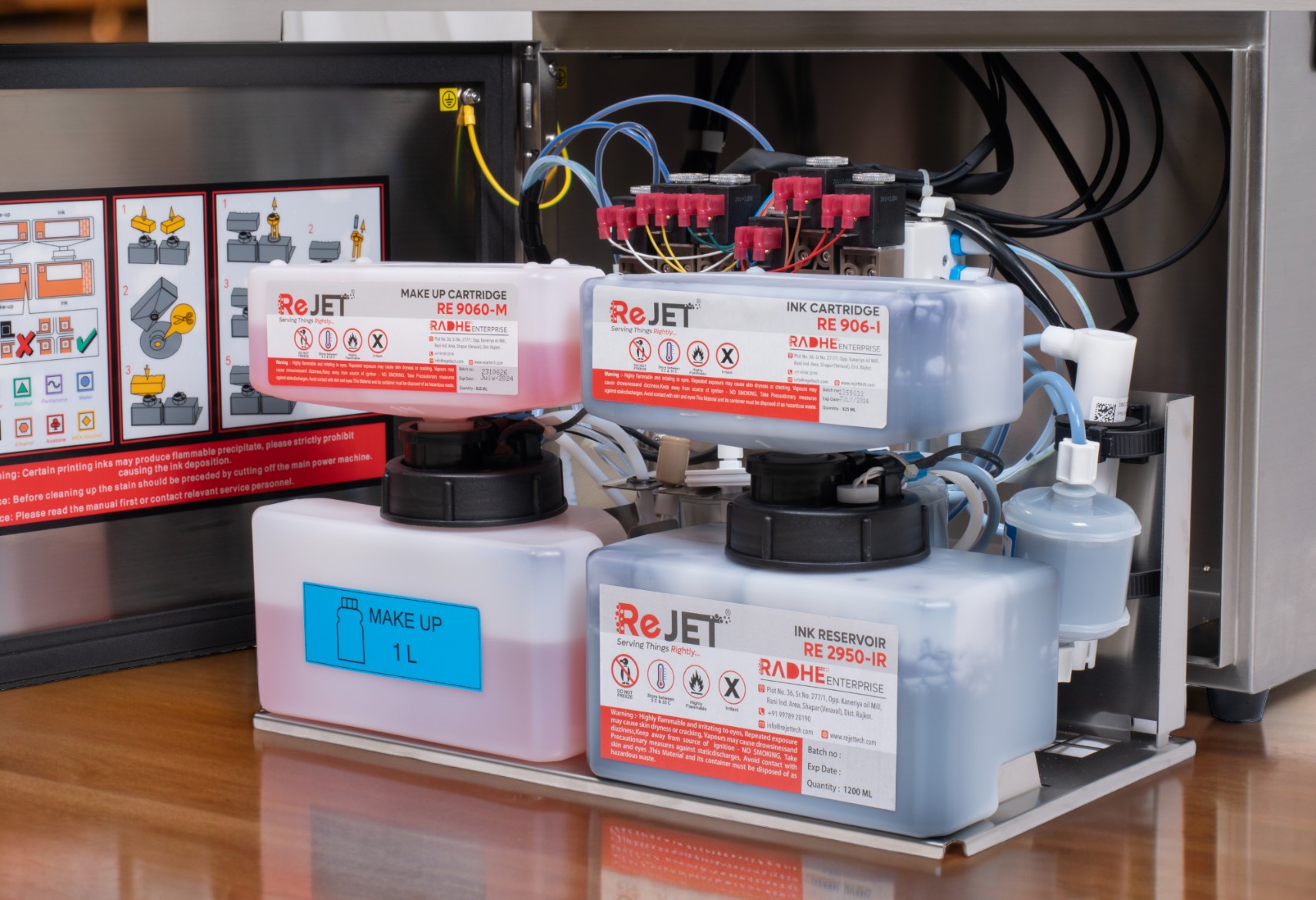

Ink System
| Ink Viscosity Control | : | Automatic Viscometer |
| Ink Bleed Control | : | Automatic Start-Up/Shut-Down |
| Ink & Make Up | : | Automatic metered |
| Nozel Auto Flush System | : | Automatic at Start/Shutdown Time |
Cabinet
| Standered Finish L Grained 304 stainless steel | ||
| Ip Rating | : | IpS3 (1997) |
| Conduit Length | : | 3 to 6 meters |
| Dimensions | : | 446mm X 221mm X 647mm |
