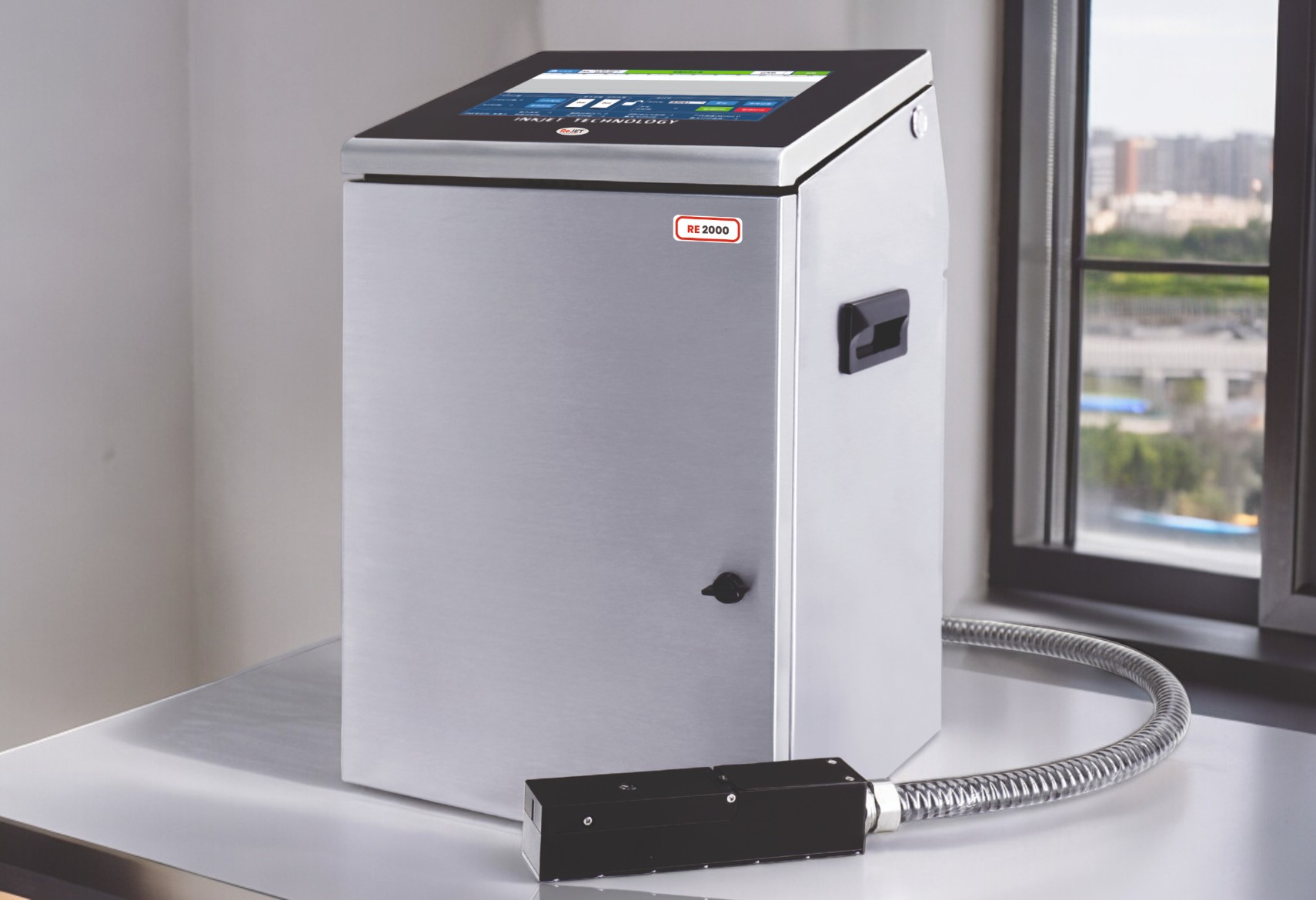

Re2000 InkJet

Download Brochure

Operating System	:	Embedded Linux security operating system
Display Screen	:	10.1 Inch colored touch screen, good human-computer interaction interface.
Communication Interface	:	Network interface, RS232, connection to enterprise EMS System (Various external equipment protocols can be added)
Power Requirements	:	220 - 240 ACV, 5A, 50/60Hz, 1PH
Print Content	:	Text, Time, Date, Logo, Shift, SN, Dynamic QR Code, Dynamic Serial Data, Dynamic Database
Memory	:	256M
Machine Material	:	304 stainless steel
Machine Dimension	:	337 X 316 X 561(LBH*)
Working Environment	:	Temperature 40-105ºF (10-40ºC) Humidity 10%-90%, Non Condensing
Related Certification	:	CE, EAC, BIS
Main Hardware	:	U.S. TI AM3358 industrial-grade CPU, U.S. Xilinx Spant6 industrial-grade FPGA, ASIC chip
External Interface	:	Optical Sensor, Encoder, Signal Light Alarm, Output, Information Selection and Control, Reset Switch
Support Language	:	Support more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Japanese, Spanish, Italian, etc).

Print Head Duct	:	3MTR
Nozzle Specification	:	70um
Printing Height	:	2mm to 20mm
Printing Distance	:	3mm to 30mm
Printing Lines	:	1 to 4 Lines
Printing Speed	:	528 m/min
Counter	:	Up to 24 counters
Ink Colour	:	Black, Red, Blue, Green, Sky Blue, Brown
Ink Type	:	High adhesion, high temperature resistance, Special for glass, permeability, food grade, Oil resistance
Printing Material	:	Carton, Plastic, Metal, Boarding, Pipe, Stone, Cable, Glass, Electronic components, Auto parts, Industrial chemical packaging Medical, Food
Print Content	:	Text, Time, Date (Julian Year), Logo, Shift, SN, Dynamic Barcode/QR Code, Dynamic Serial Data, Dynamic Database

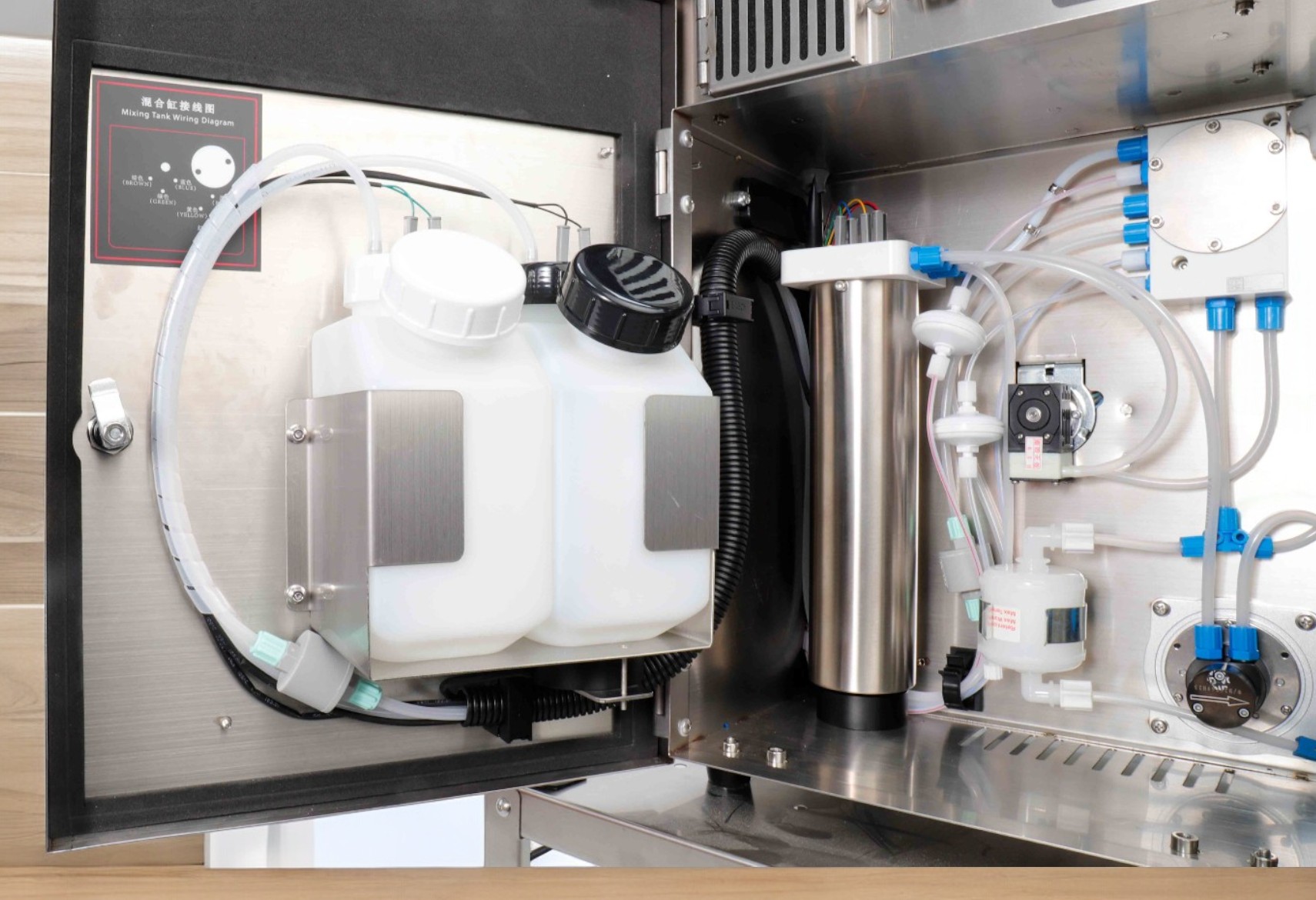

The double stirring ink system design of the white ink machine and the automatic stirring mode of software sleep can better solve the problem of pigment and special ink precipitation, to ensure the stable operation of the machine
